Some Projects

Combining modern methods with our own unique blend of care, value & engineering rigour

Beechwood North, Basildon

01104 Swan NU Living Beechwood North ARCH 1
01104 Swan NU Living Beechwood North ENG 1
01104 Swan NU Living Beechwood North Ren 4

Designed with BPTW and Swan NuLiving, Beechwood North is a pioneering modular build development of 88 new homes as part of Swan’s larger ambition is to create sustainable, responsible quality housing.

01104 Swan NU Living Beechwood North ARCH 2
01104 Swan NU Living Beechwood North Ren 3

Engenuiti have helped to develop our CLT modular product. We are extremely happy with their overall performance, knowledge and professionalism. Their enthusiasm is infectious and we highly recommend Nathan & his team. Paul Leonard - Swan NuLiving

The homes are built from cross-laminated timber (CLT) grown in sustainably managed forests.

Using finite element analysis, the modules are designed to act as rigid boxes allowing the full capacity of the panels in all directions to be assessed and utilised, creating a very efficient and simple structure. This approach means internal walls do not need to align between floor levels, nor do they require support at ground level – significantly reducing foundations.

The modules were assessed at all construction stages to ensure they remained stiff and stable from factory build, during transportation, lifting and in the permanent condition. Designing the connections to work for both the factory and site conditions was also key from the outset.

Assembly and full fit out are undertaken in Swan’s new modular housing factory, minimising disruption, reducing waste and helping to build the homes in 50% of the usual traditional build times at a much higher, controlled quality that’s often associated with factory manufacturing processes.

Architect: BTPW & SWAN

For: SWAN NuLiving

Related Projects

Palmerston Road 3

The Collective, Palmerston Road, Harrow

Site constraints limit the building height, scale and massing, dictating a geometry that minimises the loss of light of …

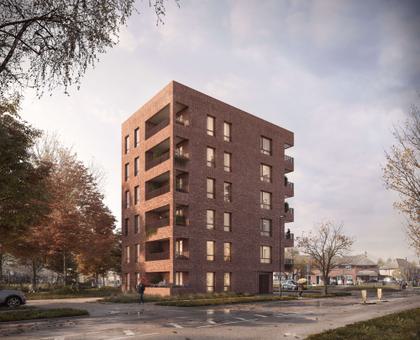

01284 BBB BXB Arch 3
